KP-1299C

Sale!
KP-1299C
NZ$1,799.00 NZ$1,699.00

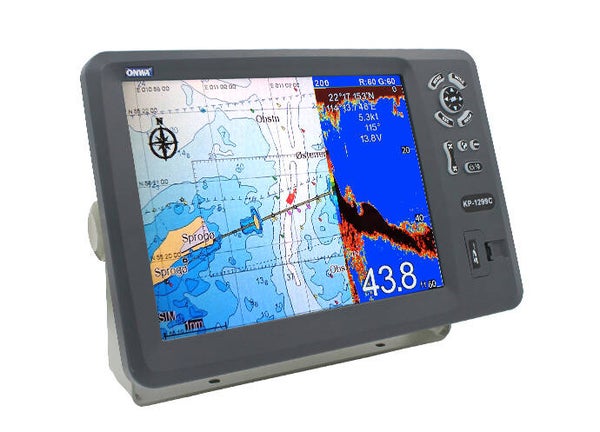

Onwa KP-1299C GPS chart plotter with fish finder. You can get new thru-hull or transom transducer at extra $100. It may work with your old transducer . We can make adaptor cable free of charge. You can add Onwa radar at extra $2200

GPS RECEIVER CHARACTERISTICS

  1. Receiver 50 parallel channel GPS receiver continuously Tracks and uses up to 50 satellites to compute and update your position
  2. Acquisition times Cold start: 27 seconds average Warm start: 27 seconds average Hot start: 1 second average
  3. Update rate 1/second,continuous
  4. Accuracy Position: 2.5 meters(95%) without S/A Velocity: 0.1 Meter/sec without S/A Time: ±100ns synchronized to GPS time
  5. Dynamics Altitude: 50,000m Max Velocity: 500 m/s Acceleration: 4g Max
  6. Datum WGS 84 & Others
  7. Interfaces NMEA 0183 input and output,RS232 and RS422 output
  8. Antenna KA07

AIS INTERFACE

  1. Data input NMEA 0183 , RS232 or RS422
  2. Baud rate 38,400

ECHO SOUNDER

  1. Echo Color 8 colors (including background color) according to echo intensity. Monochrome display is also available. The background color is selectable from blue, light blue, white and black.
  2. Basic Range Meters 5/10/20/40/80/150/200/300/600 Feet 15/30/60/120/200/400/600/1000/1500 Fathoms 3/5/10/20/40/80/100/150/200 Passi/Braza 3/5/10/30/50/100/150/200/300 The basic ranges can be changed on the system menu.
  3. Range Shift Up to 300 meters (1500 feet,200fathoms,300 passi/braza)
  4. Zoom Range Times 2,3,4 and 5 ranges
  5. Bottom Lock Expansion Range 5/10meters,10/20feet,2/5fathoms,2/5passi/braza
  6. Auto Mode Automatic adjustment of range and gain
  7. Display Mode High Frequency (200K),Low Frequency (50K), Dual (200K and 50K 1/2display on each), Zoom (200K and 50K zoom) and A-scope Display
  8. Zoom Display Marker Zoom, Bottom Zoom and Bottom-lock Expansion
  9. Display Advance Speed Lines/TX:Freeze,1/8,1/4,1/2,1/1,2/1
  10. TX Frequency 50 and 200kHz (alternately transmitted)
  11. Power Output 600W
